Membrane switch is a set of key functions, indicating components, instrument panel as one of the operating system.It consists of four parts: panel, upper circuit, isolation layer and lower circuit. Press the membrane switch, the contact on the circuit deforms downward, and the electrode plate of the lower circuit contacts conduction, after the finger is released, the contact on the circuit bounces back, the circuit is disconnected, and the circuit triggers a signal.
|
| |
OEM Specifications:
| Customized Membrane Switch | |||
| Item | Details | Item | Options |
| Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
| Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
| Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
| Printing | Pantone or RAL Chart. | Touch | Tactile |
| Dome | PET(cover layer) | Lights | LED Lights |
| Spacer | PET | Dimension | Customized Per Drawing |
| Metal Dome | φ6 ， φ8 ， φ10 ， φ12 | Printing | Follow the Artwork |
| Circuit | PET Printed | Application | Used For Electronic Control Panel |
| Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
| Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing | CoreDraw , AI , Auto CAD |
Product's Specifications:
It is with waterproof and moisture-proof function. The waterproof rating can reach IP66 by using 3M300LSE adhesive.
Connector: Pin space standard is 2.54mm（common),1.0mm(common）and 1.27mm.
It can be embossed with the round shape, pan shape, edges embossed or non-standard shape.
The detailed structure of the membrane switch.
The applications of membrane switches are Remote controls, Instrumentation, Electronic scales, household appliances, Human-machine interface, mechatronic control and so on.

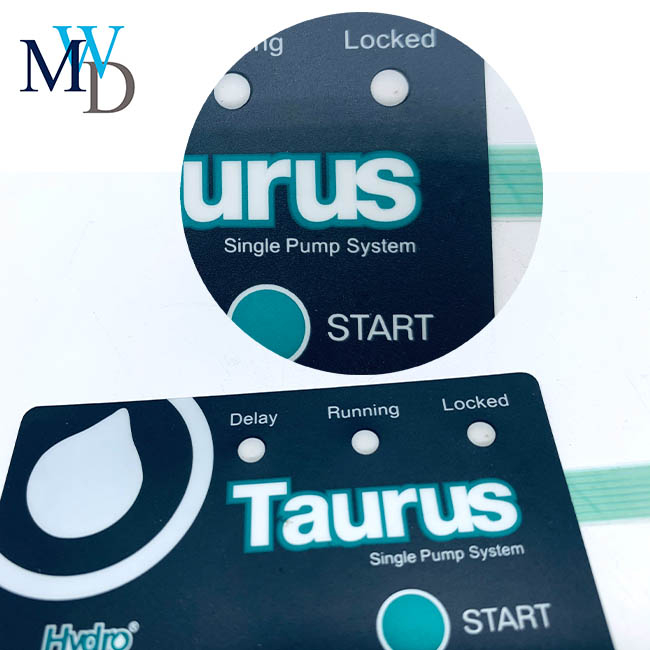

We have made many different types of membrane switch for our customers, which is available to custom make any shape.
