Customized Ribbon Traces Membrane Switches

Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on. It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.

Availability:

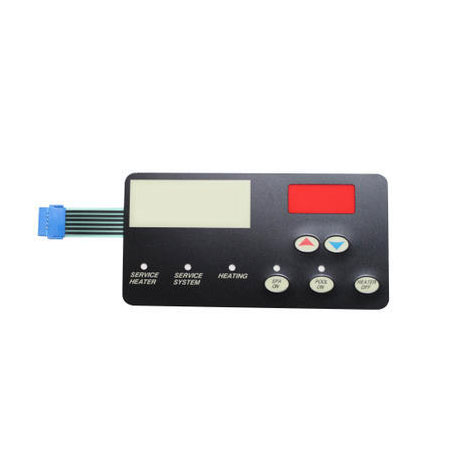

Customized Ribbon Traces Membrane Switches

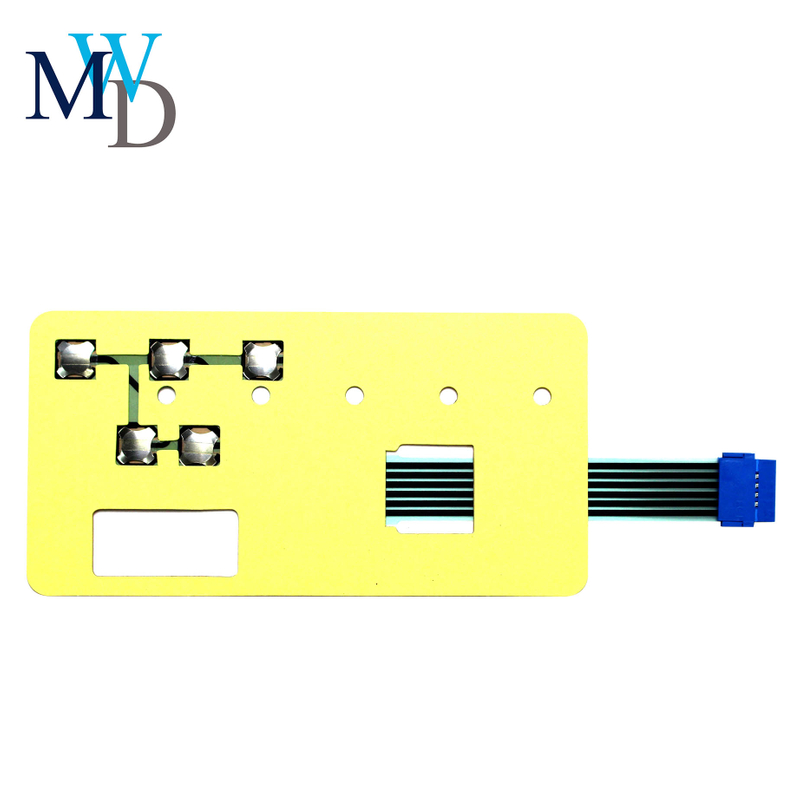

Customized Ribbon Traces Membrane Switches
Customized Ribbon Traces Membrane Switches

Membrane switch is a set of key functions, indicating components, instrument panel as one of the operating system.It consists of four parts: panel, upper circuit, isolation layer and lower circuit.


OEM Specifications:

Customized Membrane Switch
Item  Details  Item  Options
Overlay Material

PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc.  PC-G11,G42,GE8010,GE 8B35,etc.

Special Requirement Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low   Temperature
Flame Retardant    UL   94-V0 , UL 94-V2 Connector Female and Male Connectors or ZIF Connector
Ink SEIKO , MERLIA ,etc. Surface Embossed or Flat
Printing Pantone or RAL Chart. Touch Tactile
Dome  PET(cover layer) Lights LED Lights
Spacer PET Dimension Customized Per Drawing
Metal Dome φ6 , φ8 , φ10 , φ12 Printing Follow the Artwork
Circuit PET   Printed Application  Used For Electronic Control Panel
Rear Adhesive  3M467, 3M468, 3M9495   , 3M9448A,etc. Overlay Adhesive 3M467, 3M468, 3M9495   , 3M9448A,etc.
Total Thickness 0.2 - 5.0 mm  Artwork / Drawing   Format  CoreDraw , AI , Auto   CAD


  • We have made many different types of membrane switch for our customers, which is available to custom make any shape.
