Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on. It was widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
|
| |
OEM Specifications:
| Customized Membrane Switch | |||
| Item | Details | Item | Options |
| Overlay Material | PET-Autotex series F150/200/250, V150/200/250, EBG130/180/250 etc. PC-G11,G42,GE8010,GE 8B35,etc. | Special Requirement | Medical, Waterproof grade of IP67, UV-resistant , Anti-Bacteria ,High or Low Temperature |
| Flame Retardant | UL 94-V0 , UL 94-V2 | Connector | Female and Male Connectors or ZIF Connector |
| Ink | SEIKO , MERLIA ,etc. | Surface | Embossed or Flat |
| Printing | Pantone or RAL Chart. | Touch | Tactile |
| Dome | PET(cover layer) | Lights | LED Lights |
| Spacer | PET | Dimension | Customized Per Drawing |
| Metal Dome | φ6 ， φ8 ， φ10 ， φ12 | Printing | Follow the Artwork |
| Circuit | PET Printed | Application | Used For Electronic Control Panel |
| Rear Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. | Overlay Adhesive | 3M467, 3M468, 3M9495 , 3M9448A,etc. |
| Total Thickness | 0.2 - 5.0 mm | Artwork / Drawing Format | CoreDraw , AI , Auto CAD |
Product's Specifications:

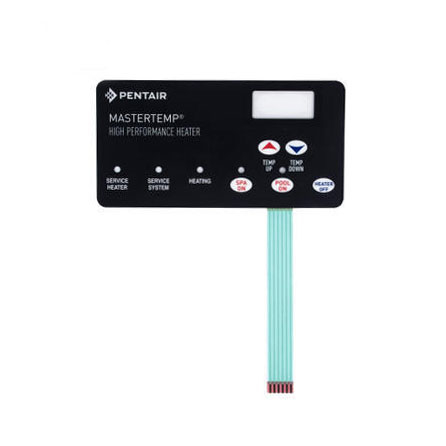

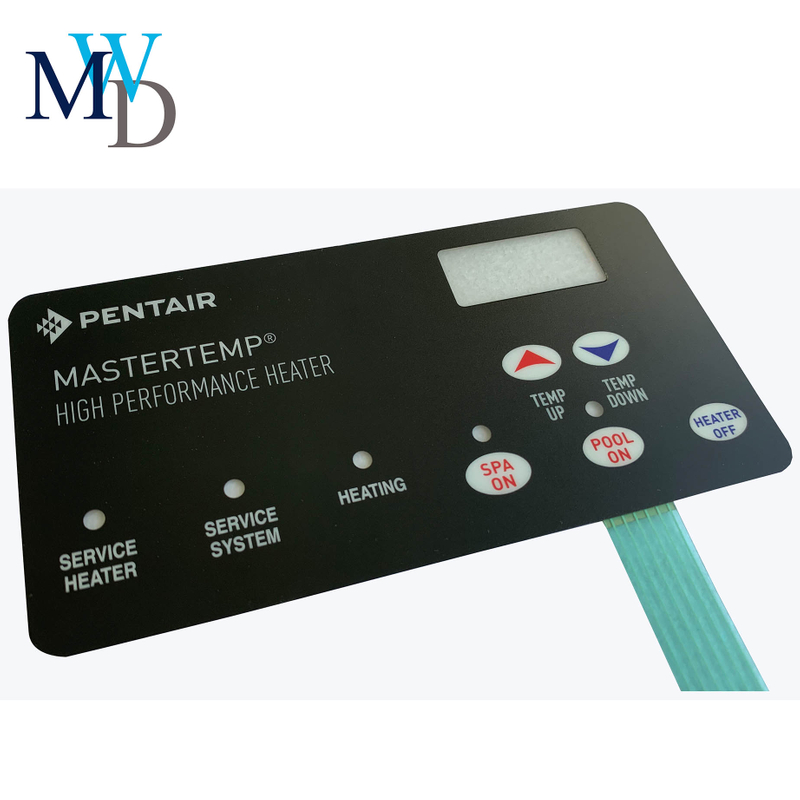

Customized Ultraviolet-proof Membrane Switch.
Backside visual: Punching the windows, holes for the led light and dome. The products processed with 3M468 adhesive.
Connector: Pin space standard is 2.54mm（common),1.0mm(common）and 1.27mm.

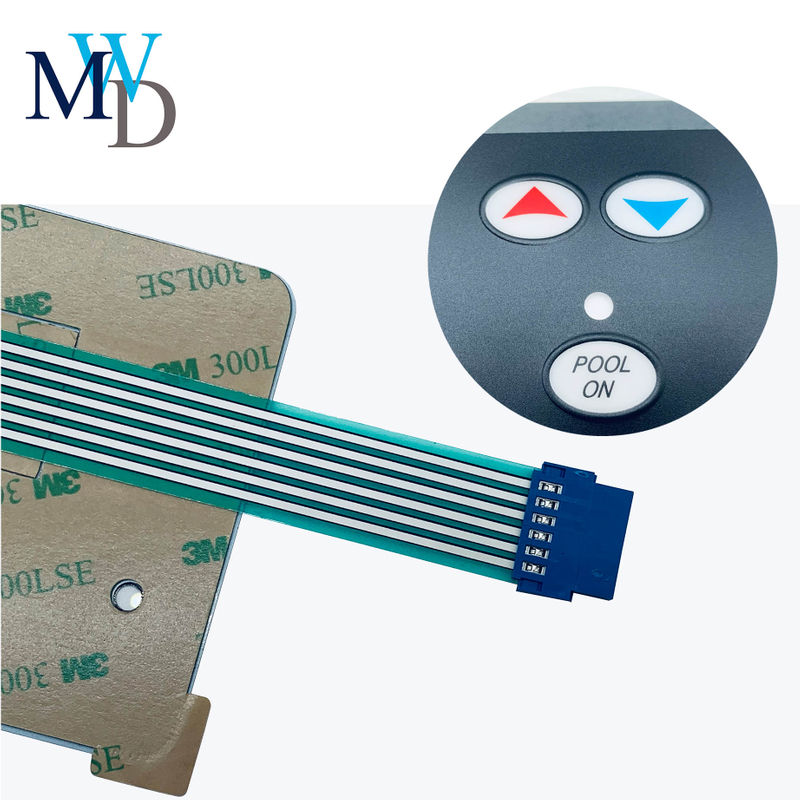

The membrane switch is with waterproof and moisture-proof function. The waterproof rating can reach IP66 by using 3M300LSE adhesive.
The substrate for making circuits should be PET It is an ideal material for making membrane switch circuits because of its folding resistance and high elasticity.
It consists of 6 main layers like overlay, spacer adhesive, fixed dome tape, circuit adhesive, lower circuitry and back adhesive tape.
We have made many different types of membrane switch for our customers, which is available to custom make any shape.
The applications of membrane switches are Remote controls, Instrumentation, Electronic scales, household appliances, Human-machine interface, mechatronic control and so on.
